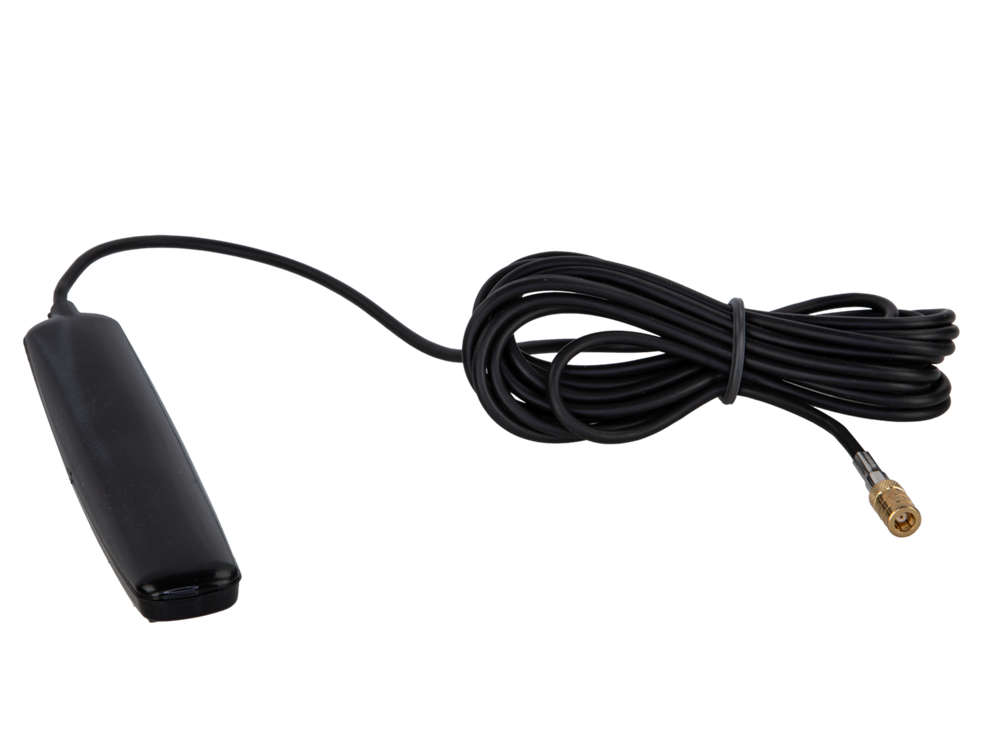

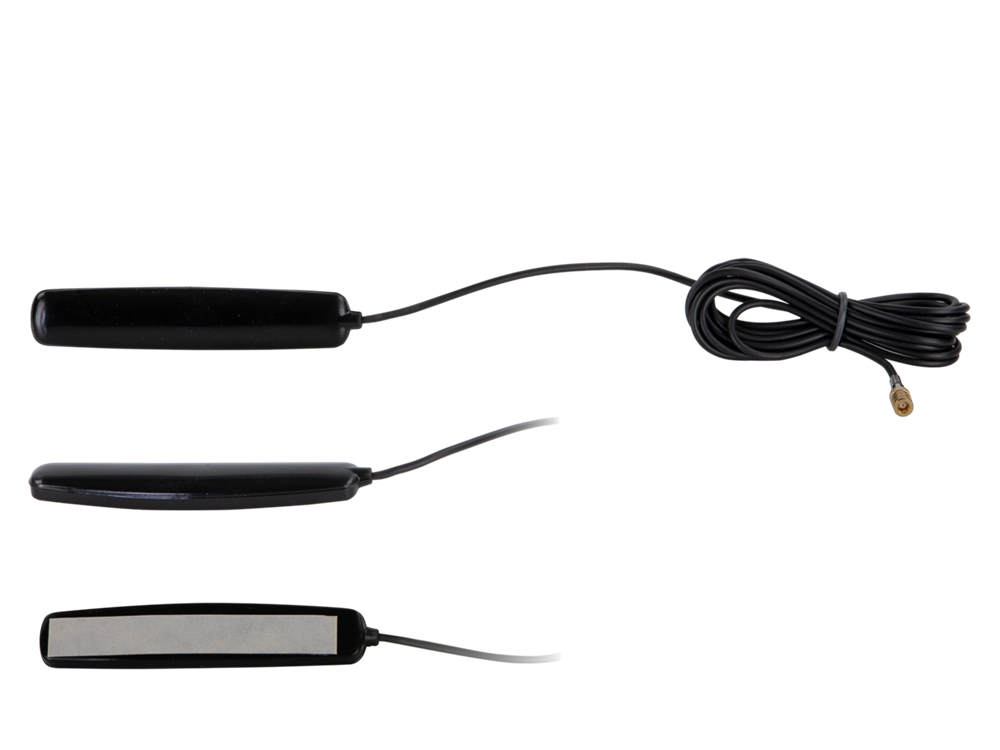

DAB/DAB+AKTIV RUDEANTENNE MED SMB(F)

DAB/DAB+: +12V phantom power

In case of reception problems:

check antenna cable and antenna adapter

check vehicle for faults due to retrofit LED lighting
check vehicle for faults due to retrofit voltage converter / power supply units / USB charging adapter
check vehicle for faults due to retrofit digital power amplifiers
Use Case:

Suitable for mounting on all vehicles, especially on campers, motorhomes, caravan and commercial vehicles on glass, plastic or fiberglas surfaces.

Reception Mode:
DAB/DAB+

Installation:
mounting vertical internal adhesive

Dimensions:
antenna: Antenne: L = 113 mm / B = 22 mm / H = 12 mm

Connections:

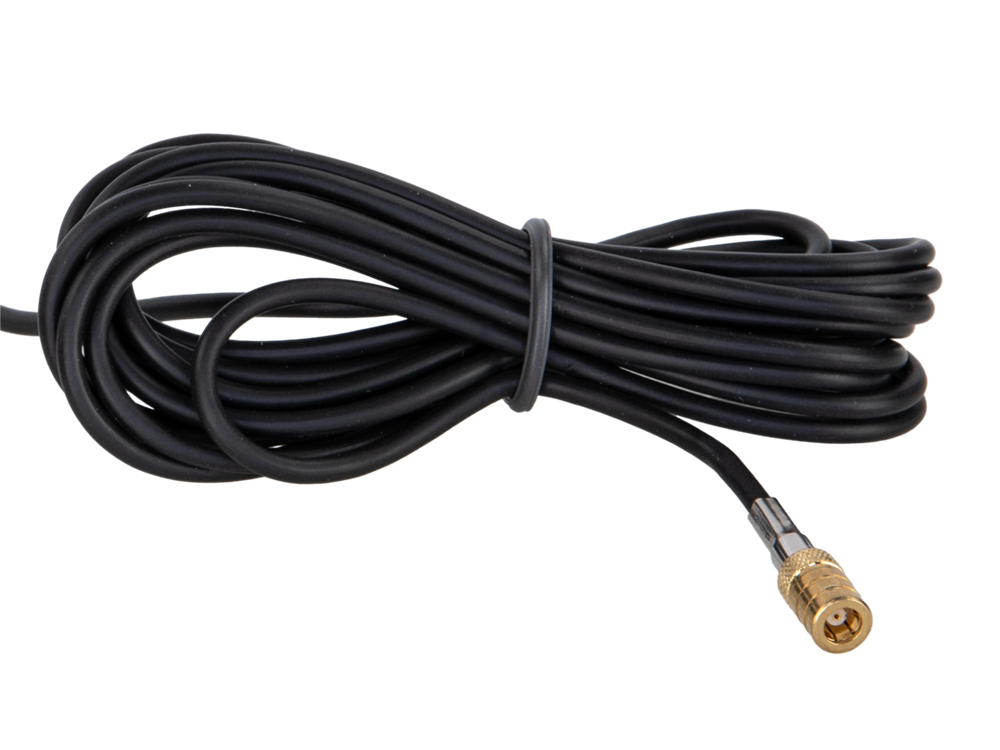

DAB+: SMB(f) / cable: RG174 / L = 250 cm

Frequency range:
DAB III: 174MHz - 240MHz
L Band: 1452MHz - 1492MHz

Gain:
DAB III: 10db
L Band: 5db

Power supply:
DAB/DAB+:+12V
