Varenr.: 772000-6003
På lager hos vores leverandør

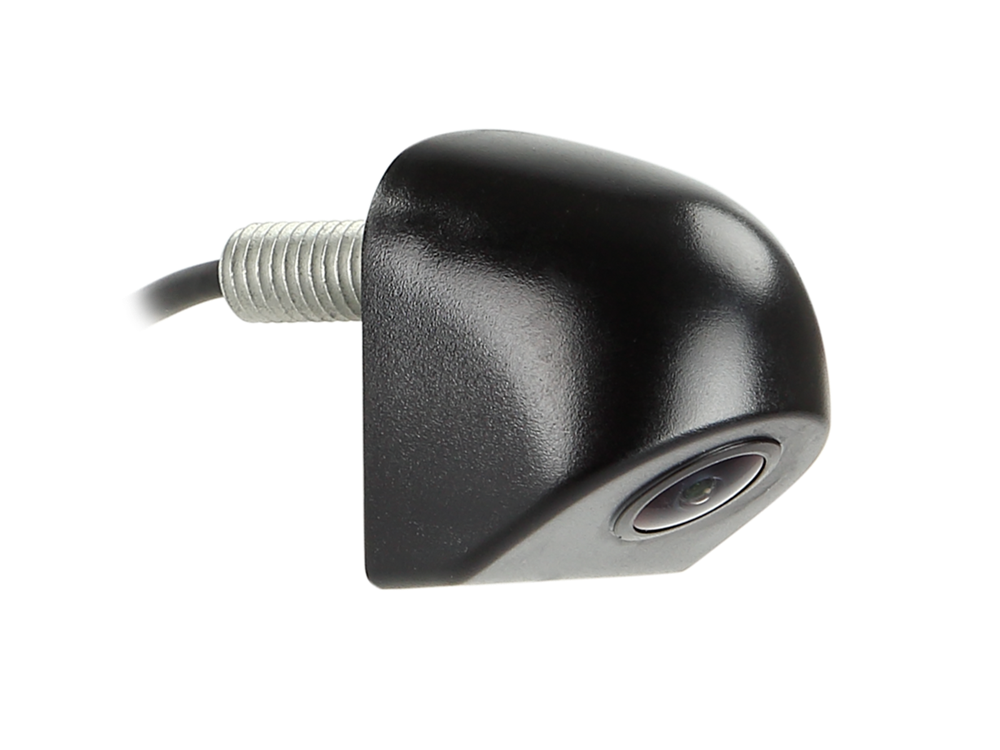

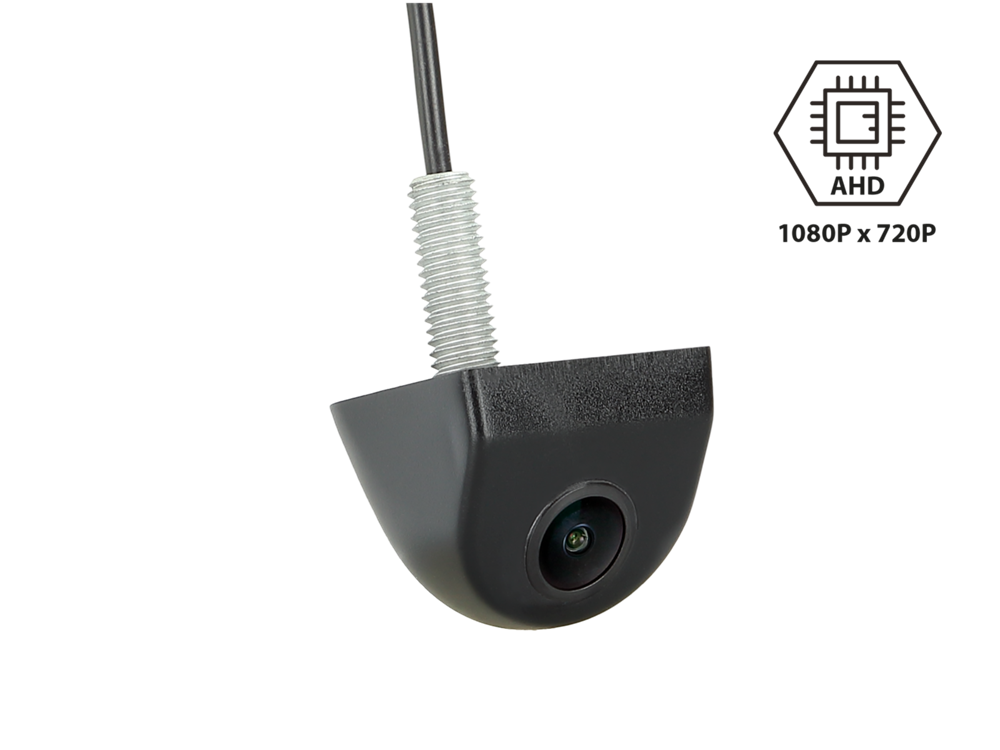

Rear/Front view camera AHD universal ( Analog high definition)
Design: foursquared
Installation: sub-construction / build-up-construction
with horizontal mirror function / vertical mirror function
Note:
acv cameras are suitable for continuous operation
before installation > check the viewing angle and camera alignment at the installation site with a test monitor
camera operating voltage: +3V
camera power supply: +12V / +24V
connection without voltage converter +3V in scope of delivery damages the camera
connection:
red: +12V / +24V switched load-stable fused
black: car body direct groud/GND
RCA(m) yellow: video
jumper:
green: horizontal mirror functionactivate/deactivate
white: vertical mirror function activate/deactivate
Product characteristic camera:
Design: plastic with 8mm screwed tube cable guiding
Color: black
Extras: horizontal mirror function via jumper / vertical mirror function via jumper
Image sensor:
TV system: NTSC
Effective pixels:
Lens: 1,9mm / F 2.0
Lux: 0,3
Resolution: 600 TV lines
Lens angle: diagonal 170°
View angle: horizontal 103° vertical 75° +5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +3V DC
Power supply: +12V / +24V DC > with voltage converter
Current consumption: 200mA
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 34,5 mm / 33 mm / 27,57 mm
Pigtail at the camera 1m +/-:
4 Pin acv-system connector(m) Ø5,2mm
2 jumper
Voltage converter +3V:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm / 4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor
Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video
